ANGENIEUX EZ-3 45-165mm T2.3 Super35 / 68-250mm T3.5 Full-Frame PL/E/EF Mount
ืขืืฉืช ืืื ืืืืื EZ ืฉื Angenieux ืืื ืขืืฉื 45-165 ื"ื T2.3 ื S35 ืื 68-250 ื"ื T3.5 ื FF. ื ืืชื ืืขืืื ืขื ืืขืืฉื PL ืื E ืื EF ืืืื ื, ืืื ืืกืฃ ื ืืชื ืืืืืืฃ ืืช ื Back element ืืื Super 35mm ื Full Frame.
- Covers Both S35 & Full Frame/VistaVision
- EZ-3 45-165mm 3.7x Zoom in S35
- EZ-3 68-250mm 3.7x Zoom in FF/VV
- Super35/FF/VistaVision Rear Lens Groups
- PL Mount with Optional Mounts Available
- 0.8 MOD Focus/Iris/Zoom Gears
- Focus Marks in Feet & Meters

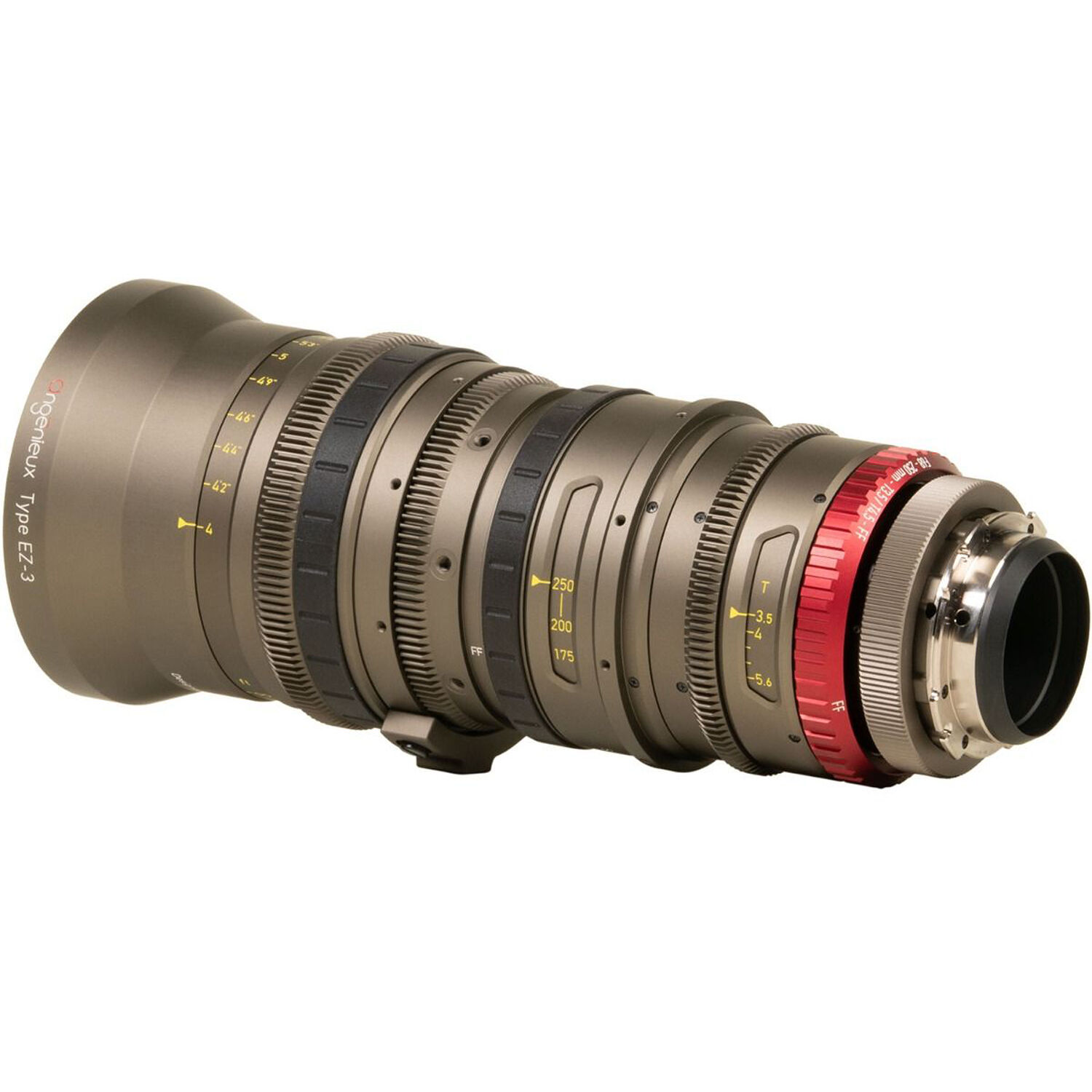

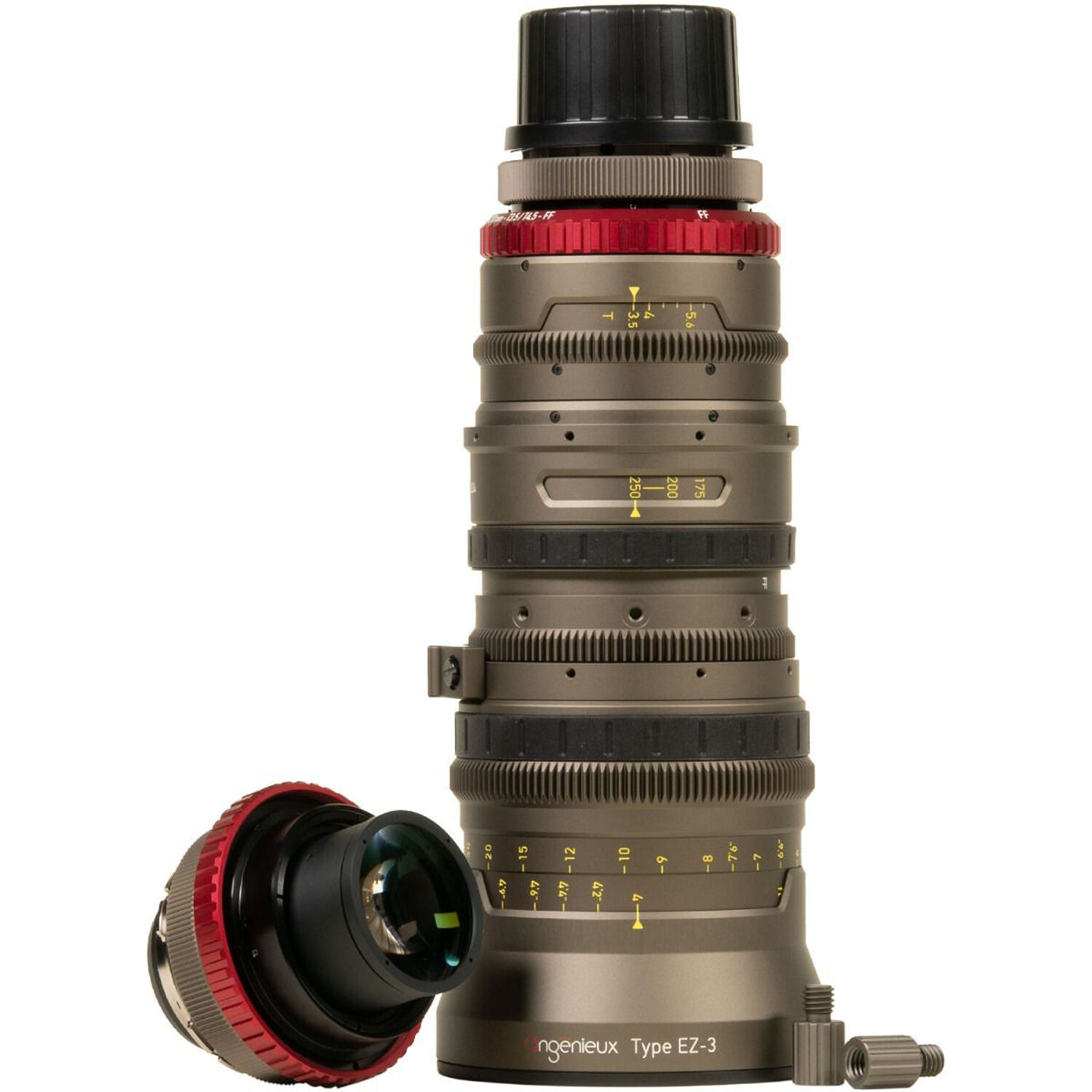

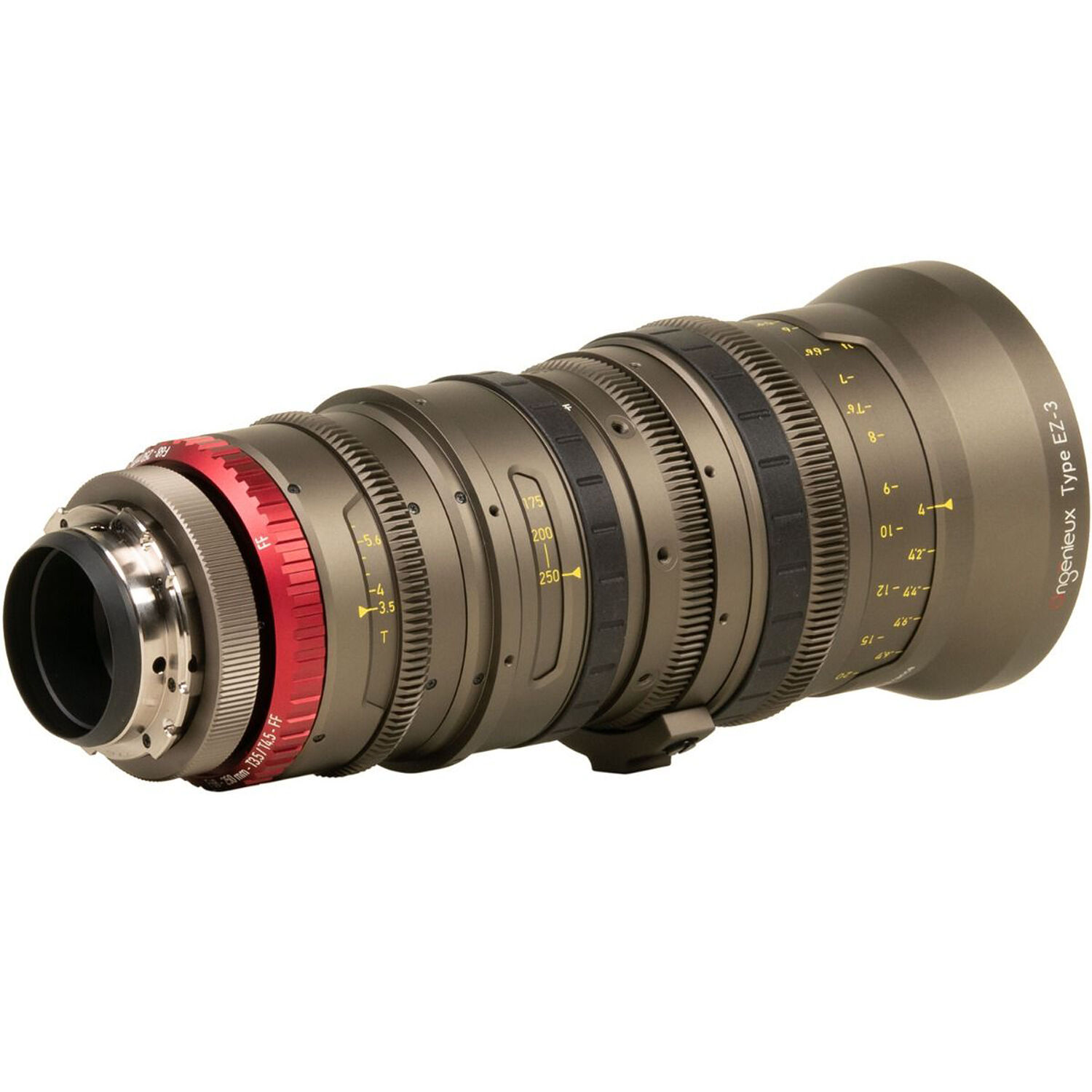

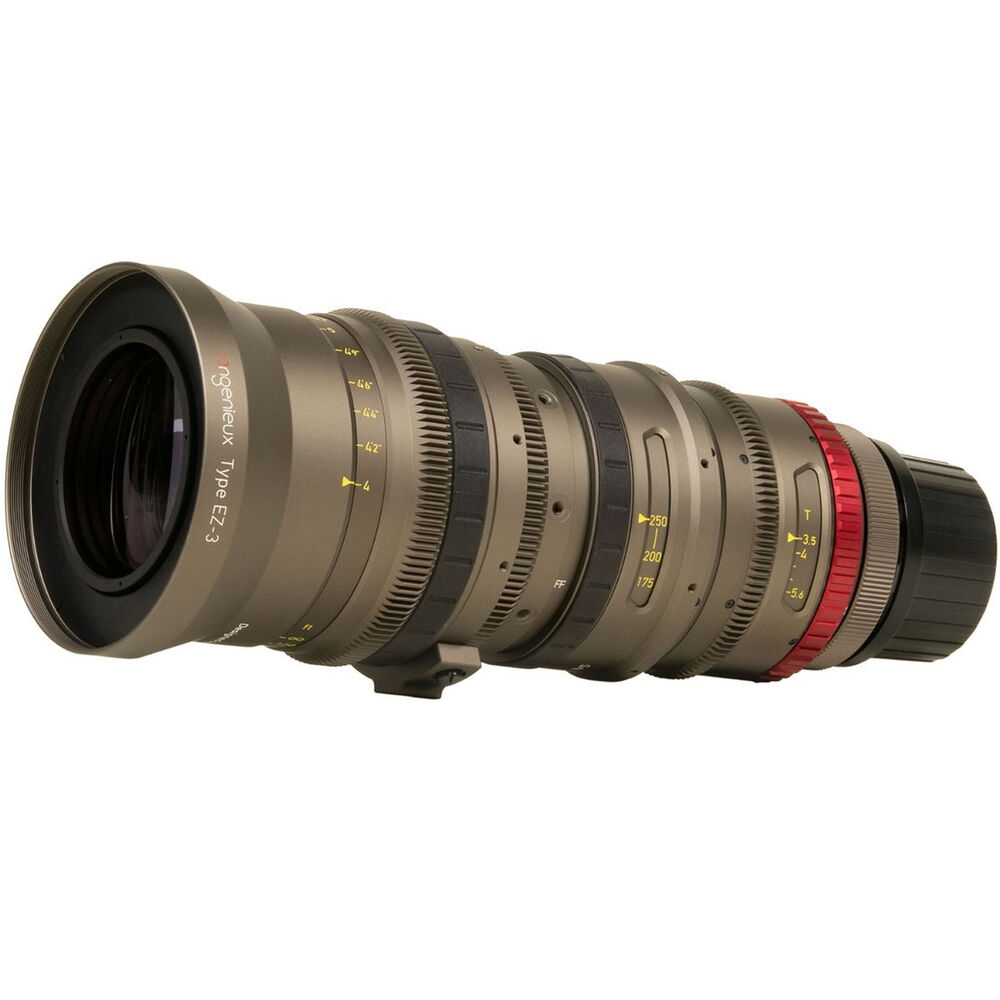

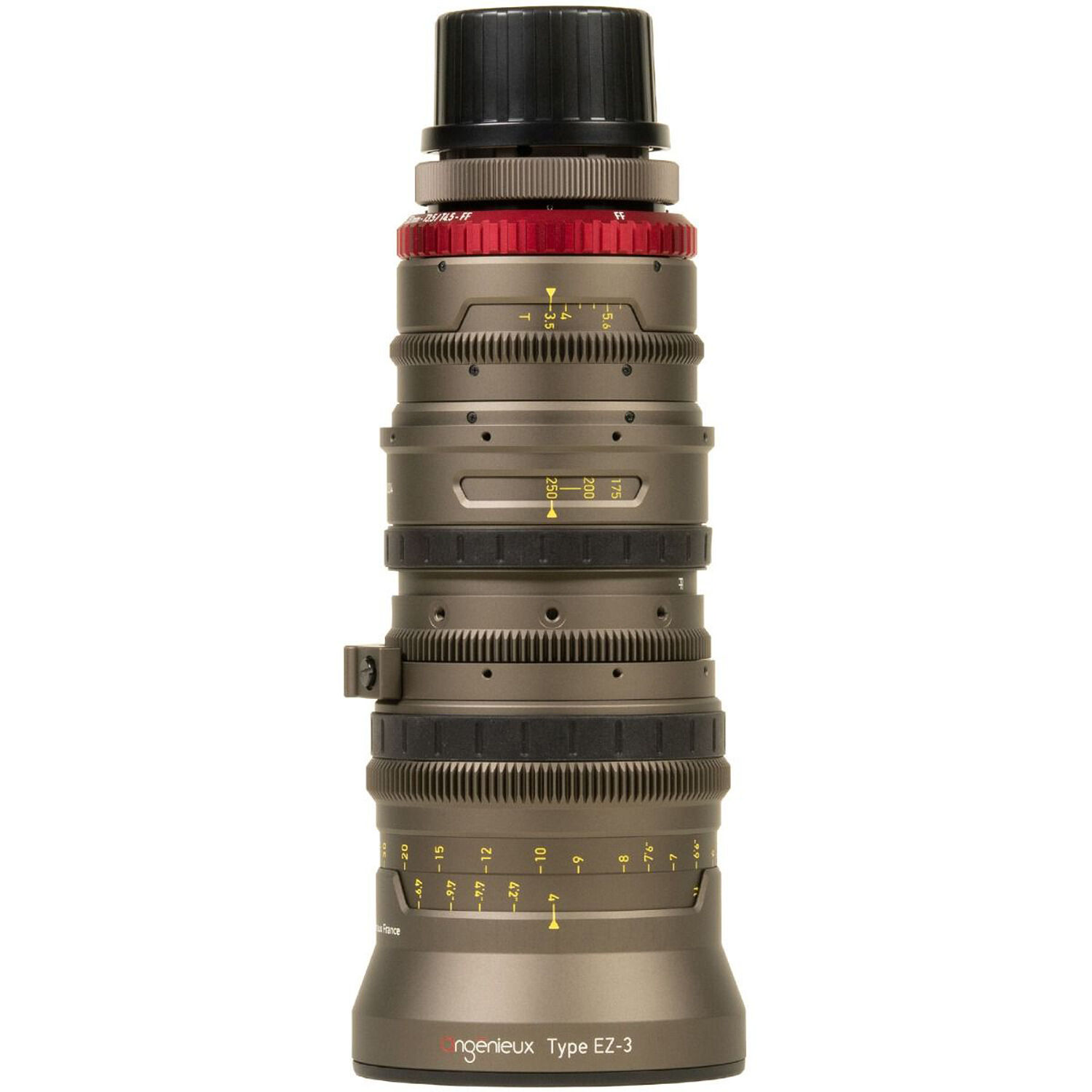

Theย EZ-3 68-250mm & 45-165mm Cinema Zoom Kitย fromย Angenieux consists of a compact PL-mount zoom lens plus both Super35 and FF/VistaVision rear lens-groups, enabling you to use the zoom with a wide range of cine-style cameras. Simply swap out the rear group to use this versatile 3.7x ratio zoom with the format of your choice on a project-by-project basis. The ARRI PL mount can be changed for separately available Sony E or Canon EF mounts, further expanding the EZ-3 zoom’s versatility.This lens features industry-standard 0.8 MOD focus, iris, and zoom gears for compatibility with follow focus units and lens control motors. The 114mm front diameter enables you to work with a wide variety of rod-supported matte boxes.

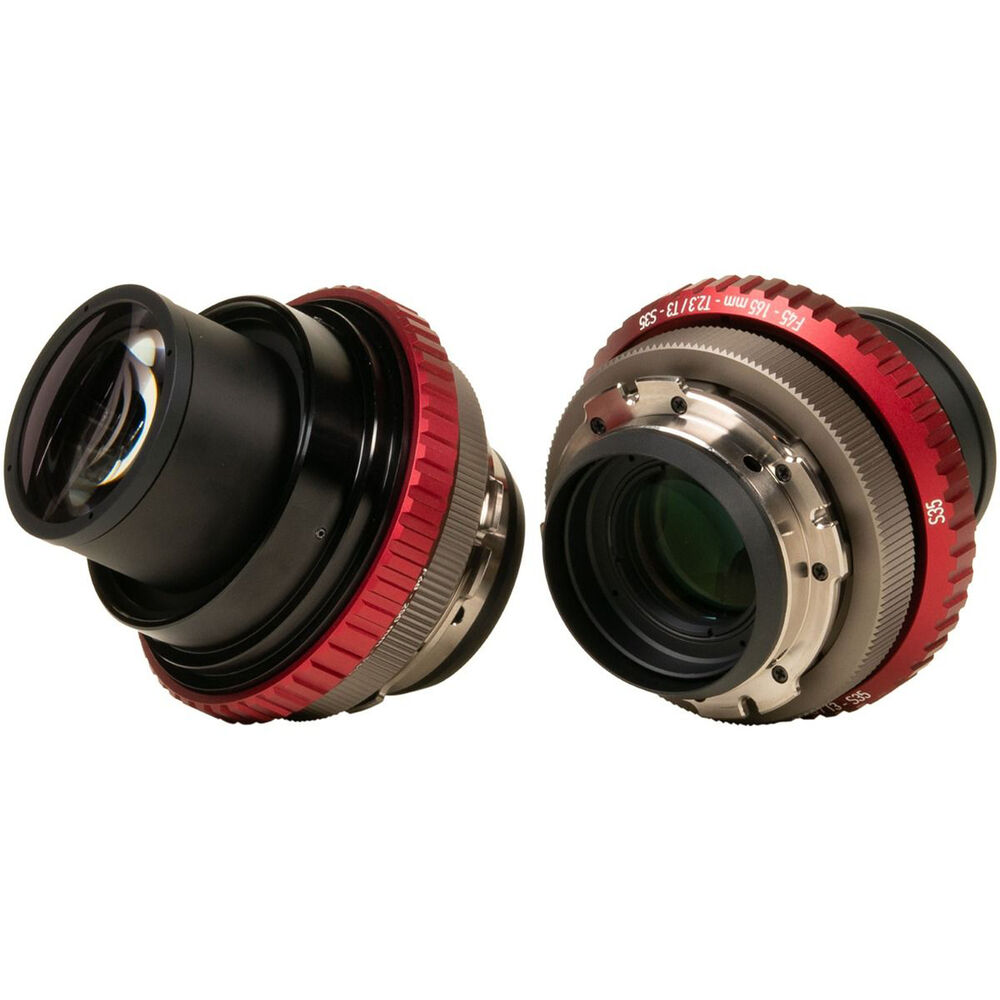

Interchangeable Rear Optics
- Angenieux’s innovative quick IRO (Interchangeable Rear Optics) system provides a compact, two-in-one sensor-format compatibility solution.
- The included screw-mounted S35 and full-frame/VistaVision real optical blocks can be changed in the field by users.
- Extender: the full-frame rear group also functions as a 1.5x extender for S35 capture.
- No crop factor: the 22mm/T3 wide-angle end for large format cameras converts the lens into a 15mm/T2.0 for S35 cameras, maintaining a similar field of view with extra gain in the T-stop.

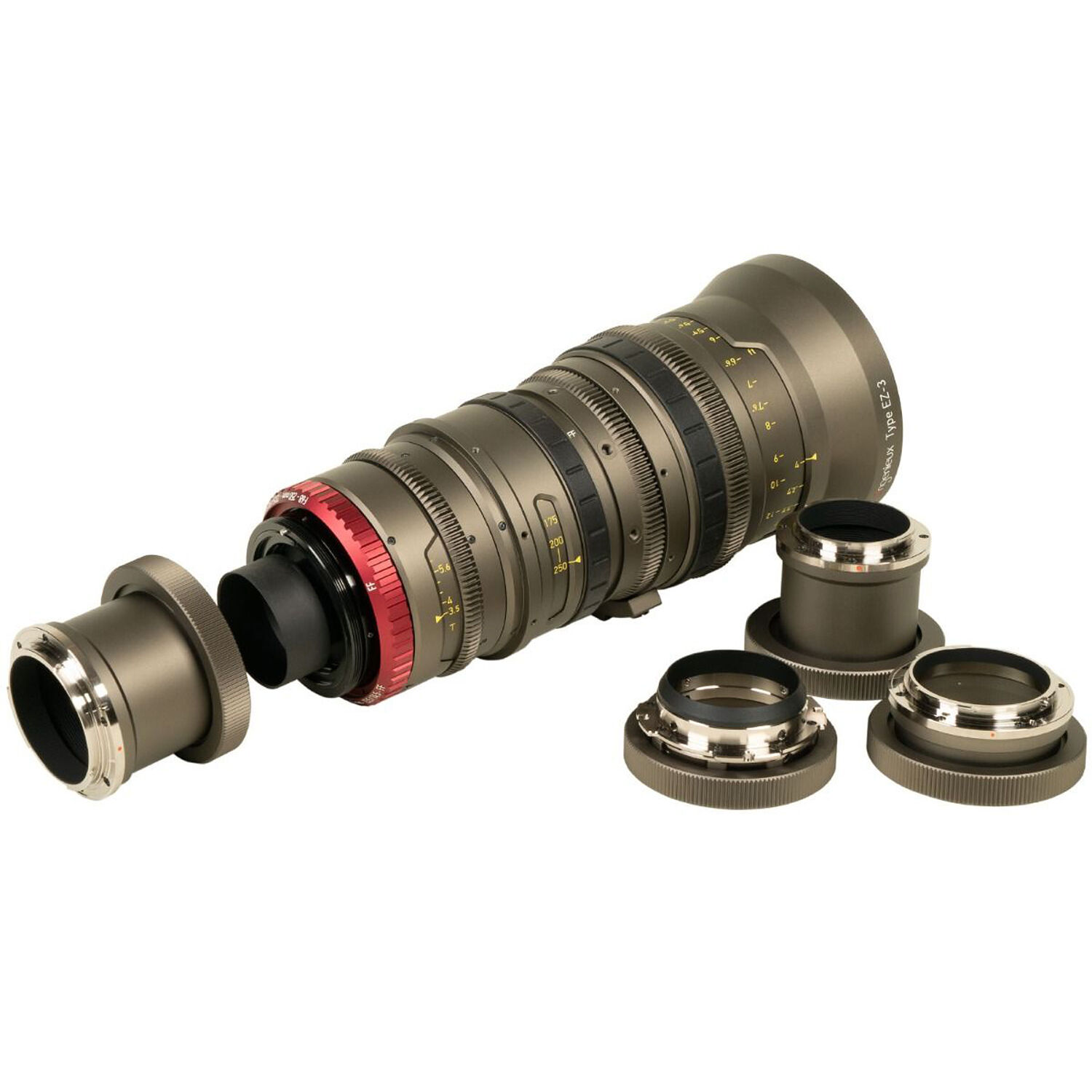

Interchangeable Lens Mounts
- This EZ-3 zoom lens ships with an ARRI PL mount, which can be swapped with separately available Sony E, Canon EF, or Canon RF lens mounts for compatibility with a truly wide variety of cameras.
Fast Maximum Aperture
- The relatively fast T2.3 maximum aperture in Super35 and the T3.5 in full frame enables you to light to a lower level than would normally be required for many zooms.
- In full frame, the EZ-3 maintains a constant T-stop from 68-200mm or a constant T-stop across the entire zoom range when the aperture is set to T4.5 or slower.
EZ Series Compatibility
- The EZ-3 zoom’s Focus/Iris/Zoom gears occupy the same positions as the EZ-1 and EZ-2, enabling it to use the same accessories.
- This zoom is compatible with the Angenieux MSU-1 and MSU-1A servo units for ENG-style use.
Manual Lens Control Rings
- Featuring independent manual control rings for focus, iris, and zoom. Each control ring incorporates industry standard 0.8 MOD lens gear teeth.
114mm Front Diameter
- The EZ-3 shares the same 114mm front common to the Angenieux OPTIMO lens series, enabling you to easily share matte boxes between the EZ-3 and the OPTIMO lenses.
- A 105mm thread lets you add filters to the front of the lens when you want to eliminate the weight of a matte box.
ืืืคืืืงื
| Mount | PL/EF/E-mount |
|---|---|
| Focal Length | FF: 68-250mm |
| Aperture | FF: T3.5-4.5 |
ืืืืื
| Front Lens Diameter | 114mm |
|---|---|
| Length | 26.4cm |
| Weight | 2.6 KG |
| ืชืืื ืขืืฉื LS-10/11 | |
| ืืืจื ืืื | |
| ืงืืืก |
